EGFR ELISA Kit

Produktnummer ABIN1981827

Produktdetails EGFR ELISA Kit

Target: EGFR (Epidermal Growth Factor Receptor (EGFR))

Bindungsspezifität: pTyr1068

Reaktivität: Human

Nachweismethode: Colorimetric

Methodentyp: Cell ELISA

Applikation: ELISA

Verwendungszweck: Cell-Based Human EGFR (Tyr1068) Phosphorylation ELISA Kit. Suitable for adherent whole cell lines.

Marke: CellBIND®

Proben: Cell Culture Cells

Analytische Methode: Semi-Quantitative

Spezifität: The antibodies provided in this kit recognizes human EGFR phosphorylated at site Tyrosine-1068 and total EGRF for comparison.

Produktmerkmale:

• Site and signal pathway-specific
• In vitro detection of adherent cell culture
• No sample lysis needed
• Compatible with a standard ELISA plate reader
• Faster results than with ELISA
• Adaptable for high-throughput screening and drug discovery

Bestandteile:

• uncoated 96-well Microplate
• Wash Buffer A
• Wash Buffer B
• Fixing Solution
• Quenching Buffer
• Blocking Buffer
• Anti-phospho antibody
• Anti-pan antibody
• HRP-Conjugated Secondary Antibody
• TMB One-Step Substrate
• Stop Solution

Benötigtes Material:

• Distilled or deionized water
• 100 mL and 1 liter graduated cylinders
• Tubes to prepare sample dilutions
• Protease and Phosphatase inhibitors
• Precision pipettes to deliver 2 μL to 1 mL volumes
• Adjustable 1-25 mL pipettes for reagent preparation
• Benchtop rocker or shaker
• Microplate reader capable of measuring absorbance at 450 nm

Anwendungsinformationen

Probenmenge: 100 μL

Plattentyp: Uncoated

Protokoll:

1. Seed 10,000-30,000 cells into each well and incubate overnight.
2. Apply various treatment, inhibitors or activators according to manufacture's instructions.
3. Add 100 μL of Fixing Solution into each well and incubate for 20 min at RT with shaking.
4. Add 200 μL of prepared 1X Quenching Buffer and incubate 20 min at RT.
5. Add 200 μL of Blocking Solution and incubate for 1 h at 37 °C.
6. Add 50 μL of 1X anti-phospho-protein specific antibody or anti-pan-protein specific antibody to each well and incubate for 2 h at RT.
7. Add 50 μL of prepared 1X HRP-Anti-Rabbit or Mouse IgG and incubate for 1 h at RT.
8. Add 100 μL of TMB One-Step Substrate Reagent to each well.
9. Incubate 30 min at RT.
10. Add 50 μL of Stop Solution to each well.
11. Read at 450 nm immediately.

Aufbereitung der Reagenzien:

NOTE: Thaw all reagents to room temperature immediately before use. If wash buffers contain visible crystals, warm to room temperature and mix gently until dissolved.
NOTE: Briefly centrifuge (~1,000g) ITEMS G, H, and I before opening to ensure maximum recovery.

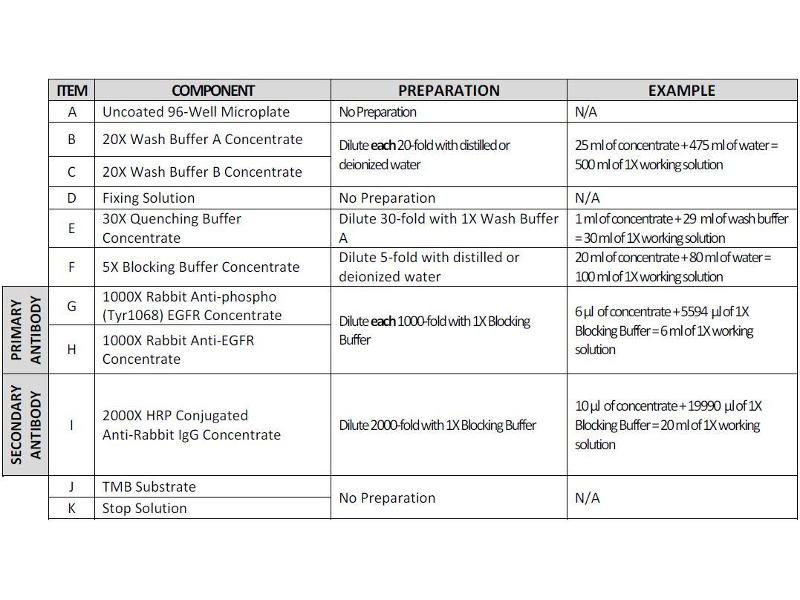

For more information look at the picture.

Testdurchführung:

NOTE: ALL incubations and wash steps must be performed under gentle rocking or rotation (~1-2 cycles/sec).

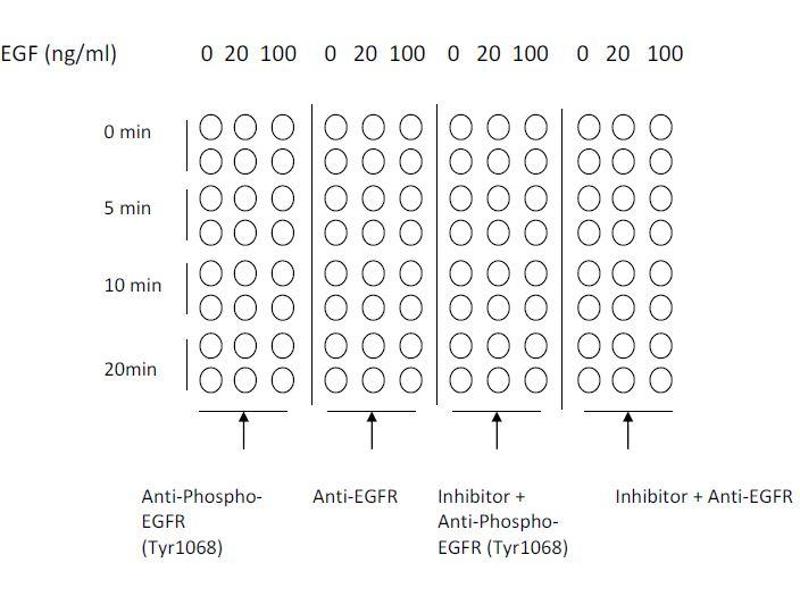

1. Design your experiment. For example, see Figure 2 below.
OPTIONAL: If seeding HUVECs, HMEC-1 or other loosely attached cells, coat the Uncoated 96-Well Microplate (ITEM A) by adding 100 µL poly-L-Lysine (Recommended Sigma Aldrich) into each well and then follow manufacturer's instructions. A pre-coated CellBIND® microplate or other poly-lysine treated tissue culture plate may be used in place of Item A.
2. Seed 100 µL of 20,000 cells into each well of the Uncoated 96-Well Microplate (ITEM A) provided and incubate overnight at 37 °C with 5 % CO2.
NOTE: The optimal cell number used will vary on the cell line and the relative amount of protein phosphorylation. More or less cells may be used but this must be determined empirically.
NOTE: The cells can be starved ~4-24 hours (depending on cell line) prior to treatment with inhibitors or activators.
3. Apply various treatments, inhibitors (such as siRNA or chemicals) or activators according to manufacturer's instructions and incubate for the desired time points.
NOTE: It is recommended to dissolve inhibitors or activators into serum-free cell culture medium before treating the cells (unless otherwise stated in the manufacturer's instructions.)
4. Discard the cell culture medium by flipping the microplate upside down and gently tapping the bottom of the microplate over a sink.
5. Wash by pipetting 200 µL of the prepared 1X Wash Buffer A (see Section V. Reagent Preparation) into each well. Discard the wash buffer (same as step 4) and wash 2 more times for a total of 3 washes using fresh wash buffer each time. After the final wash, gently blot the microplate onto a paper towel to remove any excess/remaining buffer.
NOTE: To avoid cell loss, do not pipette directly onto the cells. Instead, gently dispense the liquid down the wall of cell culture wells. Also avoid the use of vacuum suction or too forcefully tapping the microplate when discarding any solution.
6. Add 100 µL of Fixing Solution (ITEM D) into each well and incubate for 20 minutes at room temperature.
NOTE: The fixing solution is used to permeabilize the cells.
7. Repeat wash step 5.
8. Add 200 µL of the prepared 1X Quenching Buffer (ITEM E) into each well and incubate 20 minutes at room temperature.
NOTE: The quenching buffer is used to minimize the background response.
9. Wash 4 times with 1X Wash Buffer A.
10. Add 200 µL of the prepared 1X Blocking Buffer (see Section V. Reagent Preparation) into each well and incubate for 1 hour at 37 °C.
11. Wash 3 times with the prepared 1X Wash Buffer B (ITEM C).
NOTE: If needed, the microplate may be stored at -80 °C for several days after this wash.
12. Add 50 µL of the prepared 1X primary antibody (ITEM G or H) into each corresponding well and incubate for 2 hours at room temperature.
13. Repeat step 11.
14. Add 50 µL of 1X HRP Conjugated secondary antibody (ITEM I) into each well and incubate for 1 hour at room temperature.
15. Wash 3 times with 1X Wash Buffer B.
16. Add 100 µL of the TMB Substrate (ITEM J) into each well and incubate for 30 minutes at room temperature in the dark.
17. Add 50 µL of the Stop Solution (ITEM K) into each well. Read at 450 nm immediately.

Beschränkungen: Nur für Forschungszwecke einsetzbar

Handhabung

Handhabung: Avoid repeated freeze-thaw cycles.

Lagerung: -20 °C

Informationen zur Lagerung: The entire kit may be stored at -20°C for up to 6 months from the date of shipment. Avoid repeated freeze-thaw cycles.

Haltbarkeit: 6 months

Referenzen für EGFR ELISA Kit (ABIN1981827)

Hackel, Zwick, Prenzel, Ullrich: "Epidermal growth factor receptors: critical mediators of multiple receptor pathways." in: Current opinion in cell biology, Vol. 11, Issue 2, pp. 184-9, (1999) (PubMed).

Zwick, Hackel, Prenzel, Ullrich: "The EGF receptor as central transducer of heterologous signalling systems." in: Trends in pharmacological sciences, Vol. 20, Issue 10, pp. 408-12, (1999) (PubMed).

Biscardi, Maa, Tice, Cox, Leu, Parsons: "c-Src-mediated phosphorylation of the epidermal growth factor receptor on Tyr845 and Tyr1101 is associated with modulation of receptor function." in: The Journal of biological chemistry, Vol. 274, Issue 12, pp. 8335-43, (1999) (PubMed).

Hubbard, Wei, Ellis, Hendrickson: "Crystal structure of the tyrosine kinase domain of the human insulin receptor." in: Nature, Vol. 372, Issue 6508, pp. 746-54, (1995) (PubMed).

Details zu EGFR

Target: EGFR (Epidermal Growth Factor Receptor (EGFR))

Andere Bezeichnung: EGFR (EGFR Produkte)

Synonyme: C-erb ELISA Kit, CG10079 ELISA Kit, D-EGFR ELISA Kit, D-Egf ELISA Kit, DEGFR ELISA Kit, DER ELISA Kit, DER flb ELISA Kit, DER/EGFR ELISA Kit, DER/faint little ball ELISA Kit, DER/top ELISA Kit, DER/torpedo ELISA Kit, DER1 ELISA Kit, DEgfr ELISA Kit, Degfr ELISA Kit, Der ELISA Kit, DmHD-33 ELISA Kit, Dmel\\CG10079 ELISA Kit, EFG-R ELISA Kit, EGF-R ELISA Kit, EGFR ELISA Kit, EGFr ELISA Kit, EGfr ELISA Kit, EK2-6 ELISA Kit, Egf ELISA Kit, Egf-r ELISA Kit, EgfR ELISA Kit, El ELISA Kit, Elp ELISA Kit, Elp-1 ELISA Kit, Elp-B1 ELISA Kit, Elp-B1RB1 ELISA Kit, HD-33 ELISA Kit, TOP ELISA Kit, Torpedo/DER ELISA Kit, Torpedo/Egfr ELISA Kit, c-erbB ELISA Kit, d-egf-r ELISA Kit, dEGFR ELISA Kit, dEGFR1 ELISA Kit, dEgfr ELISA Kit, der ELISA Kit, egfr ELISA Kit, flb ELISA Kit, l(2)05351 ELISA Kit, l(2)09261 ELISA Kit, l(2)57DEFa ELISA Kit, l(2)57EFa ELISA Kit, l(2)57Ea ELISA Kit, mor1 ELISA Kit, top ELISA Kit, top/DER ELISA Kit, top/flb ELISA Kit, torpedo/Egfr ELISA Kit, torpedo/egfr ELISA Kit, EGFR12 ELISA Kit, EGFR15 ELISA Kit, egfr1 ELISA Kit, Erbb2 ELISA Kit, ERBB ELISA Kit, ERBB1 ELISA Kit, HER1 ELISA Kit, PIG61 ELISA Kit, mENA ELISA Kit, ErbB-1 ELISA Kit, Errp ELISA Kit, 9030024J15Rik ELISA Kit, AI552599 ELISA Kit, Erbb ELISA Kit, Errb1 ELISA Kit, Wa5 ELISA Kit, wa-2 ELISA Kit, wa2 ELISA Kit, epidermal growth factor receptor ELISA Kit, Epidermal growth factor receptor ELISA Kit, epidermal growth factor receptor a (erythroblastic leukemia viral (v-erb-b) oncogene homolog, avian) ELISA Kit, EGFR ELISA Kit, Egfr ELISA Kit, egfra ELISA Kit, egfr1 ELISA Kit, LOC5564544 ELISA Kit

Gen-ID: 1956

UniProt: P00533

Pathways: NF-kappaB Signalweg, RTK Signalweg, Fc-epsilon Rezeptor Signalübertragung, EGFR Signaling Pathway, Neurotrophin Signalübertragung, Stem Cell Maintenance, Hepatitis C, Positive Regulation of Response to DNA Damage Stimulus, Interaction of EGFR with phospholipase C-gamma, Thromboxane A2 Receptor Signaling, EGFR Downregulation, S100 Proteine
