ToxinSensor Chromogenic LAL Endotoxin Assay Kit

Produktnummer ABIN491526

Produktdetails

Reaktivität: Human, Diverse Spezies

Detektionsbereich: 0.005-1 U/mL

Untere Nachweisgrenze: 0.005 U/mL

Applikation: Cytotoxicity Test (CyTox)

Marke: ToxinSensor™

Produktmerkmale: ToxinSensor ^TM Chromogenic LAL Endotoxin Assay Kit is designed to be used as a quantitative In Vitro end-point endotoxin test for human and animal parenteral drugs, biological products, and medical devices. This method utilizes a modified Limulus Amebocyte Lysate and a synthetic color producing substrate to detect endotoxin chromogenically. The kit has a minimum endotoxin detection limit of 0.005 EU/mL and a measurable concentration range of 0.005 to 1 EU/mL. In addition, any sample with color (e.g. bacterial/cell culture medium, serum or blood etc.) cannot be assayed using this kit.

Bestandteile: LAL Reagent Water, 50 mL/bottle (2 bottles)
Limulus Amebocyte Lysate (LAL) (2 Vials)
E. coli Endotoxin Standard (2 Vials)
Chromogenic Substrate 1 Vial 2 Vials
Buffer S for Color-stabilizer #1 (50 mL)
Color-stabilizer #1 (2 Vials)
Color-stabilizer #2 (2 Vials)
Color-stabilizer #3 (2 Vials)
Endotoxin-free tubes (50)
Endotoxin-free Tips, 200 µL (1 box (96 tips))
Endotoxin-free Tips, 1000 µL (2 bags (12 tips))
Incubation Rack (1)

Benötigtes Material: 1. Sodium hydroxide, 0.1 N, dissolved in LAL Reagent Water, for pH adjustment.
2. Hydrochloric acid, 0.1 N, diluted in LAL Reagent Water, for pH adjustment.
3. Water bath or heating block set at 37°C.
4. Spectrometer or filter photometer with a 545 nm filter.
5. Vortexer.
6. Timer.

Anwendungsinformationen

Kommentare:

Note: The dilution of standards and incubation temperature would be critical factors that can influence the absorption value, so it?s important to make sure that the endotoxin standard is fully dissolved, and the incubation temperature should strictly be kept at 37 °C.

Aufbereitung der Reagenzien:

Limulus Amebocyte Lysate (LAL)
Reconstitute lyophilized lysate by adding 1.7 mL LAL Reagent Water. Swirl each reconstitution gently for 30 seconds, avoid foaming. Reconstituted lysate remains stable if stored at -20°C for one week. For long-term usage, freeze the lysate at -80°C immediately after reconstitution. Avoid repeated freeze and thaw cycles.
Chromogenic Substrate
Reconstitute the substrate by adding 1.7 mL of LAL Reagent Water to a final concentration of ~2 mM. Once reconstituted, the substrate solution is stable for one month when stored at 2°C - 8°C. PROTECT SUBSTRATE FROM LONG-TERM EXPOSURE TO LIGHT
Stop Solution
Reconstitute the Color-stabilizer #1 (Stop Solution) with 10 mL of buffer S. The reconstituted Stop Solution is stable for one week when stored at 2°C - 8°C.
Color-stabilizer #2 and #3
Reconstitute Color-stabilizer #2 and #3 by adding 10 mL of LAL Reagent Water for both, respectively. Each reconstitution is stable for one week when stored at 2°C - 8°C. Endotoxin Standard Solution The amount of lyophilized endotoxin standard supplied in this kit is approximately 5 - 20EU. Please refer to the label on the vial of the endotoxin standard in the kit. Dissolve lyophilized endotoxin standard by adding 2 mL of LAL Reagent Water. Mix thoroughly for 15 minutes with a vortexer to obtain an endotoxin stock solution. The reconstituted endotoxin stock solution is stable for one week when stored at 2-8°C. DO NOT FREEZE THE ENDOTOXIN STOCK SOLUTION.
Prepare 1EU/mL endotoxin solution before making standard serial dilutions. For example, if the endotoxin stock solution is 5 EU/mL, dilute 0.2 mL of 5 EU/mL endotoxin stock solution with 0.8 mL of LAL Reagent Water to make the 1 EU/mL solution.
In each assay, at least four endotoxin standard solutions covering desired concentration range should be prepared to generate a standard curve. If the endotoxin concentration for the test sample is expected to be in the range of 0.01 - 0.1 EU/mL, the serial endotoxin standard solutions could be 0.1, 0.05, 0.025 and 0.01 EU/mL, respectively. If the endotoxin concentration in sample is expected in the range of 0.1 - 1 EU/mL, the serial endotoxin standard solutions could be 1, 0.5, 0.25 and 0.1 EU/mL, respectively.

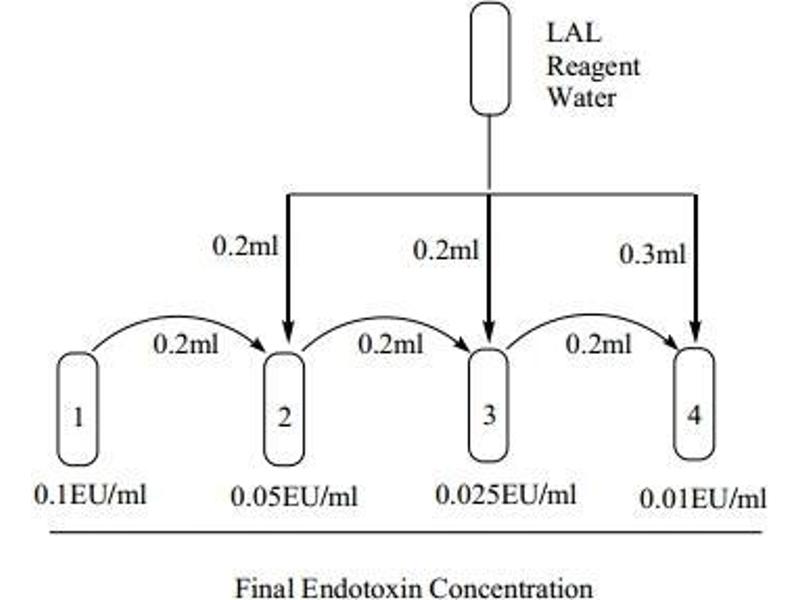

An example of the preparation of serial endotoxin standard solutions is outlined in the figure below. Each solution should be mixed thoroughly for 30 seconds with a vortexer.

Aufbereitung der Proben:

All materials or diluents used for specimen collection and test reagent preparation must be endotoxin-free. Use aseptic technique at all times. Samples to be tested must be stored in such a way that all bacteriological activity is stopped or the endotoxin level may increase over time. For example, samples can be stored at 2-8 °Cwithin 24 hours before use, but need to be stored frozen if not used within 24 hours.
Dissolve or dilute test specimen using LAL Reagent Water. Since the LAL-endotoxin reaction is pH dependent, the pH value of the mixture should be between 6.0 and 8.0 to ensure standard and data linearity. Adjust the pH of the specimen with endotoxin-free 0.1N sodium hydroxide or 0.1N hydrochloric acid. Always measure the pH of an aliquot of the bulk sample, take care to avoid contamination by the pH electrode used. If the specimen contains interfering substances, dilute the specimen until that the interference is eliminated.

Testdurchführung:

1) Carefully dispense 100 µL of standard or test sample into endotoxin-free vials. All samples should be mixed thoroughly for 30 seconds with a vortexer. Avoid foaming/bubbles. Each test must include a blank as well as at least four endotoxin standards in duplicate. The blank sample vial contains 100 µL of LAL Reagent Water instead of test sample.
2) Add 100 µL of reconstituted LAL to each vial. Cap the vials and mix well by swirling gently.
3) If the endotoxin concentration in sample is expected in the range of 0.01 - 0.1 EU/mL, incubate the rack with all vials at 37°C±1°C for 45 minutes using a water bath or heating block. If the endotoxin concentration is expected in the range of 0.1 - 1 EU/mL, incubate at 37°C±1°C for 10 minutes.
4) After proper incubation, add 100 µL of reconstituted chromogenic substrate solution to each vial. Cap the vials and swirl gently to mix well. Do not shake or vortex to avoid foaming. Incubate at 37°C±1°C for 6 minutes.
5) Add 500 µL of reconstituted Color-stabilizer #1 (Stop Solution) to each vial and swirl gently to mix well. Do not shake or vortex to avoid foaming. Add 500 µL of reconstituted Color-stabilizer #2 to each vial and mix well. Finally add 500 µL of reconstituted Color-stabilizer #3 to each vial. Gently swirl each vial to mix well. Bubbles must be avoided.
6) Read the absorbance of each reaction vial at 545 nm using distilled water as blank to adjust the photometer to zero absorbance.

Ergebnisberechnung:

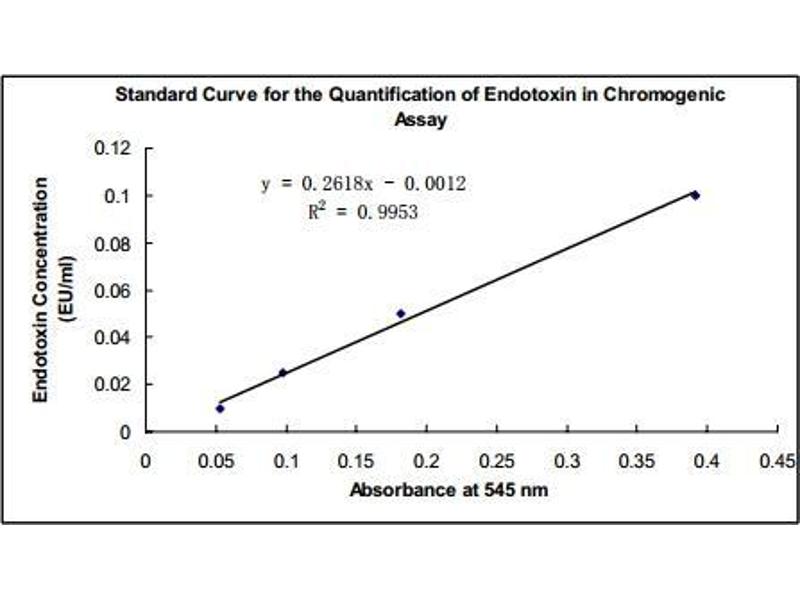

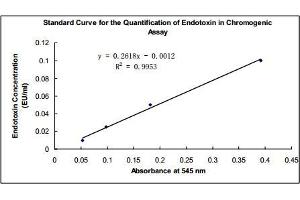

Under the standard conditions, the absorbance at 545 nm shows a linear relationship with the concentration in the range of 0.01 to 1 EU/mL. Plot the absorbance for the four standards on the x-axis and the corresponding endotoxin concentration in EU/mL on the y-axis. Draw a best-fit straight line between these points and determine endotoxin concentrations of samples graphically.

Testpräzision: Linearity
The linearity of the standard curve within the concentration range used to predict endotoxin values need to be verified for each new lot of reagents. At least 4 endotoxin standards spanning the expected concentration range should be assayed along with a blank, in duplicate. The coefficient of correlation (r) for the individual mean absorbance of the standards vs. their corresponding endotoxin concentration should be ≥0.980.
Reproducibility
Replicate samples should be run in order to establish good technique and low coefficient of variation. The coefficient of variation (C.V.) equals 100 times the standard deviation of a group of values divided by the mean and is expressed as a percent. The C.V. absorbance should be less than 10%.

Beschränkungen: Nur für Forschungszwecke einsetzbar

Handhabung

Lagerung: RT/4 °C

Informationen zur Lagerung: The kit can be stored dry at room temperature for up to 1 month. For long-term use, the kit can be kept at 2- 8 °C for up to one year. Do not freeze the kit or any of its components.

Haltbarkeit: 12 months

Referenzen

Letsiou, Sammani, Zhang, Zhou, Quijada, Moreno-Vinasco, Dudek, Garcia: "Pathologic mechanical stress and endotoxin exposure increases lung endothelial microparticle shedding." in: American journal of respiratory cell and molecular biology, Vol. 52, Issue 2, pp. 193-204, (2015) (PubMed).

Bhatia, Prabhu, Benefiel, Miller, Chow, Davis, Gaskins: "Galacto-oligosaccharides may directly enhance intestinal barrier function through the modulation of goblet cells." in: Molecular nutrition & food research, Vol. 59, Issue 3, pp. 566-73, (2015) (PubMed).

Kim, Kim, Kim, Jung, Choi, Kim, Kim: "Myricetin inhibits advanced glycation end product (AGE)-induced migration of retinal pericytes through phosphorylation of ERK1/2, FAK-1, and paxillin in vitro and in vivo." in: Biochemical pharmacology, Vol. 93, Issue 4, pp. 496-505, (2015) (PubMed).

Aslani, Schuppe, Guazzone, Bhushan, Wahle, Lochnit, Lustig, Meinhardt, Fijak: "Targeting high mobility group box protein 1 ameliorates testicular inflammation in experimental autoimmune orchitis." in: Human reproduction (Oxford, England), Vol. 30, Issue 2, pp. 417-31, (2015) (PubMed).

Phongsisay, Hara, Fujimoto: "Toll-like receptors recognize distinct proteinase-resistant glycoconjugates in Campylobacter jejuni and Escherichia coli." in: Molecular immunology, Vol. 64, Issue 1, pp. 195-203, (2015) (PubMed).

Pérez-Martínez, Valentín, Fernández, Hernández-Jiménez, López-Collazo, Zerbes, Schwörer, Nuñéz, Martín, Sallis, Díaz, Handgretinger, Pfeiffer: "Arabinoxylan rice bran (MGN-3/Biobran) enhances natural killer cell-mediated cytotoxicity against neuroblastoma in vitro and in vivo." in: Cytotherapy, Vol. 17, Issue 5, pp. 601-12, (2015) (PubMed).

Andreassen, Bøhn, Wikmark, Van den Berg, Løvik, Traavik, Nygaard: "Cry1Ab protein from Bacillus thuringiensis and MON810 cry1Ab-transgenic maize exerts no adjuvant effect after airway exposure." in: Scandinavian journal of immunology, Vol. 81, Issue 3, pp. 192-200, (2015) (PubMed).

Chinchilla, Encinas, Estepa, Coll, Gomez-Casado: "Transcriptome analysis of rainbow trout in response to non-virion (NV) protein of viral haemorrhagic septicaemia virus (VHSV)." in: Applied microbiology and biotechnology, Vol. 99, Issue 4, pp. 1827-43, (2015) (PubMed).

Yu, Qiu, Guo, Yang, Qu, Yu, Zhan, Xue, Zhong: "TRIB3 mediates the expression of Wnt5a and activation of nuclear factor-?B in Porphyromonas endodontalis lipopolysaccharide-treated osteoblasts." in: Molecular oral microbiology, Vol. 30, Issue 4, pp. 295-306, (2015) (PubMed).

Prechel, Walenga: "Complexes of platelet factor 4 and heparin activate Toll-like receptor 4." in: Journal of thrombosis and haemostasis : JTH, Vol. 13, Issue 4, pp. 665-70, (2015) (PubMed).

Turbica, Gallais, Gueguen, Tharinger, Al Sabbagh, Gorges, Gary-Gouy, Kerdine-Römer, Pallardy, Mascarell, Gleizes, Chollet-Martin: "Ectosomes from neutrophil-like cells down-regulate nickel-induced dendritic cell maturation and promote Th2 polarization." in: Journal of leukocyte biology, Vol. 97, Issue 4, pp. 737-49, (2015) (PubMed).

Wang, Wang, Lv, Zhang: "Different protein of Echinococcus granulosus stimulates dendritic induced immune response." in: Parasitology, Vol. 142, Issue 7, pp. 879-89, (2015) (PubMed).

Su, Ding: "Methods of Endotoxin Detection." in: Journal of laboratory automation, Vol. 20, Issue 4, pp. 354-64, (2015) (PubMed).

Ho, Guo, Sockolosky, Ring, Weiskopf, Özkan, Mori, Weissman, Garcia: ""Velcro" engineering of high affinity CD47 ectodomain as signal regulatory protein ? (SIRP?) antagonists that enhance antibody-dependent cellular phagocytosis." in: The Journal of biological chemistry, Vol. 290, Issue 20, pp. 12650-63, (2015) (PubMed).

Shirasuna, Matsumoto, Matsuyama, Kimura, Bollwein, Miyamoto: "Possible role of interferon tau on the bovine corpus luteum and neutrophils during the early pregnancy." in: Reproduction (Cambridge, England), Vol. 150, Issue 3, pp. 217-25, (2015) (PubMed).

Buckley, Shi, Xu, Frey, Moats, Pardo, Selman, Warburton: "Increased alveolar soluble annexin V promotes lung inflammation and fibrosis." in: The European respiratory journal, Vol. 46, Issue 5, pp. 1417-29, (2015) (PubMed).

Meraz, Melendez, Gu, Wong, Liu, Andersson, Serda: "Activation of the inflammasome and enhanced migration of microparticle-stimulated dendritic cells to the draining lymph node." in: Molecular pharmaceutics, Vol. 9, Issue 7, pp. 2049-62, (2014) (PubMed).

VanOs, Lildhar, Lehoux, Beaulé, Catelas: "In vitro macrophage response to nanometer-size chromium oxide particles." in: Journal of biomedical materials research. Part B, Applied biomaterials, Vol. 102, Issue 1, pp. 149-59, (2014) (PubMed).

Ghosh, Adisa, Chappa, Tan, Jackson, Archer, Ofori-Acquah: "Extracellular hemin crisis triggers acute chest syndrome in sickle mice." in: The Journal of clinical investigation, Vol. 123, Issue 11, pp. 4809-20, (2014) (PubMed).

Abhilash, Harikrishnan, Indira: "Ascorbic acid suppresses endotoxemia and NF-?B signaling cascade in alcoholic liver fibrosis in guinea pigs: a mechanistic approach." in: Toxicology and applied pharmacology, Vol. 274, Issue 2, pp. 215-24, (2014) (PubMed).

Antigendetails

Hintergrund: Genscript ToxinSensorTM Chromogenic LAL Endotoxin Assay Kit is designed to be a quantitative In Vitro end-point endotoxin test for human and animal parenteral drugs, biological products, and medical devices. This method utilizes a modified Limulus Amebocyte Lysate and a synthetic color producing substrate to detect endotoxin chromogenically in a broad range of 0.005 - 1 EU/mL. In addition, any sample with color (e.g. cell bacterial culture medium, serum or blood etc.) can not be assayed by this kit.
