COVID-19 Spike-ACE2 Binding Assay Kit

Produktnummer ABIN6952755

Produktdetails

Target: SARS-CoV-2 Spike, ACE2

Reaktivität: Human, SARS Coronavirus-2 (SARS-CoV-2)

Nachweismethode: Colorimetric

Applikation: Binding Studies (Bind), ELISA, Screening Assay (ScA)

Verwendungszweck: COVID-19 Spike-ACE2 binding assay kit is a rapid, simple, and sensitive method to characterize the binding affinity of the SARS-CoV-2 Spike (S) protein and the Angiotensin I Converting Enzyme 2 (ACE2) receptor complex in the presence of potential inhibitors.

Proben: Plasma, Serum

Analytische Methode: Semi-Quantitative

Produktmerkmale: The COVID-19 Spike-ACE2 binding assay kit is a rapid, simple, and sensitive method to characterize the binding affinity of the SACE2 complex in the presence of potential inhibitors. The in vitro enzymelinked immunosorbent assay can measure numerous reagents and conditions simultaneously. For example, this kit can be used for screening inhibitor activity and drugs, vaccine development, and testing potential therapeutic antibodies.

Bestandteile:

1. COVID19 S-protein Microplate (Item A): 96 wells (12 strips x 8 wells) coated with recombinant COVID19 S-protein RBD domain.
2. Wash Buffer Concentrate (20x) (Item B): 25 ml of 20x concentrated solution.
3. Assay Diluent (Item E2): 15 ml of 5x concentrated buffer. For diluting testing reagent, ACE2 protein (Item F), detection antibody (Item C) and HRP-conjugated IgG Concentrate (Item D).
4. ACE2 protein (Item F): 2 vials of purified human recombinant ACE2 protein (1 vial is enough to assay half microplate)
5. Detection Antibody ACE2 (Item C-1): 2 vials of goat anti-ACE2 (1 vial is enough to assay half microplate).
6. HRP-conjugated Anti-goat IgG (Item D-1), 15 μl of 1000x concentrated HRP-conjugated anti-goat IgG.
7. TMB One-Step Substrate Reagent (Item H): 12 ml of 3,3',5,5'-tetramethylbenzidine (TMB) in buffered solution.
8. Stop Solution (Item I): 8 ml of 0.2 M sulfuric acid.

Benötigtes Material:

1. Microplate reader capable of measuring absorbance at 450 nm.
2. Shaker.
3. Precision pipettes to deliver 2 μL to 1 mL volumes.
4. Adjustable 1-25 mL pipettes for reagent preparation.
5. 100 mL and 1 liter graduated cylinders.
6. Distilled or deionized water.
7. Tubes to prepare sample dilutions.

Anwendungsinformationen

Applikationshinweise:

• Evaluate inhibitor activity
• Screen inhibitors of the SARS-CoV-2 Spike-ACE2 complex
• Characterize antibody function
• Vaccine development
• Selection of patient serum for antibody therapy

Probenmenge: 100 μL

Plattentyp: Pre-coated

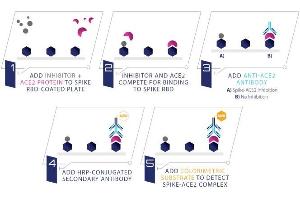

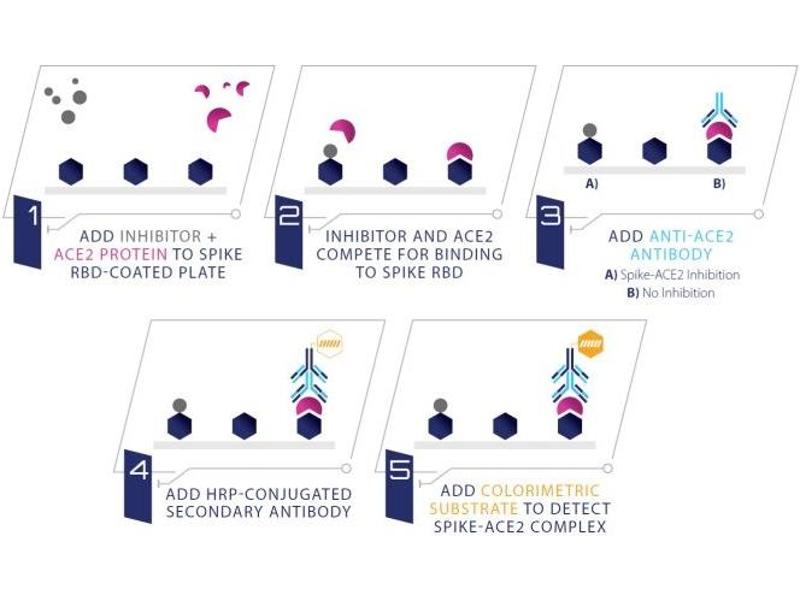

Protokoll: The COVID-19 Spike-ACE2 binding assay uses a 96-well plate coated with recombinantly-expressed RBD of the SARS-CoV-2 Spike protein. The testing reagent-of-choice is then added to the wells in the presence of recombinant human ACE2 protein. Unbound ACE2 is removed with washing, and a goat anti-ACE2 antibody is added that binds to the Spike-ACE2 complex. HRP-conjugated anti-goat IgG is then applied to the wells in the presence of 3,3',5,5'-tetramethylbenzidine (TMB) substrate. The HRP-conjugated anti-goat IgG binds to the ACE2 antibody and reacts with the TMB solution, producing a blue color that is proportional to the amount of bound ACE. The HRP-TMB reaction is halted with the addition of the Stop Solution, resulting in a blue-to-yellow color change. The intensity of the yellow color is then measured at 450 nm.

Aufbereitung der Proben:

Mix testing reagent (e.g., small molecule, antibody) with ACE2 protein concentrate, then dilute the mixture with 1x Assay Diluent dilute to make a 1x ACE2 protein working concentration. Each sample should contain the same 1x ACE2 protein concentration.

Testdurchführung:

1. Bring all reagents to room temperature (18 - 25 °C) before use. It is recommended that all samples should be run in at least duplicate.
2. Add 100 μL of each sample into appropriate wells. Cover well with plate holder and incubate for 2.5 hours at room temperature or over night at 4 °C with shaking.
3. Discard the solution and wash 4 times with 1x Wash Solution. Wash by filling each well with Wash Buffer (300 μL) using a multi-channel pipette or autowasher. Complete removal of liquid at each step is essential to good performance. After the last wash, remove any remaining Wash Buffer by aspirating or decanting. Invert the plate and blot it against clean paper towels.
4. Add 100 μL of prepared 1x detection antibody, anti-ACE2 (Reagent Preparation step 5) to each well. Incubate for 1 hour at room temperature with shaking.
5. Discard the solution. Repeat the wash as described in Step 3.
6. Add 100 μL of prepared 1x HRP-conjugated anti-goat IgG (see Reagent Preparation Step 6) to each well. Incubate for 1 hour at room temperature with shaking.
7. Discard the solution. Repeat the wash as described in Step 3.
8. Add 100 μL of TMB One-Step Substrate Reagent (Item H) to each well. Incubate for 30 minutes at room temperature in the dark with shaking.
9. Add 50 μL of Stop Solution (Item I) to each well. Read at 450 nm immediately.

Ergebnisberechnung:

Determine the average absorbance across the replicate readings per sample.

Beschränkungen: Nur für Forschungszwecke einsetzbar

Handhabung

Lagerung: 4 °C/-20 °C

Informationen zur Lagerung: The kit may be stored at 4°C up to 1 month from the date of shipment. The life of the kit can be extended up to 6 months from the date of shipment by storing the kit reagents (Item F, C-1, and D-2) at -20°C. All other components should be stored at 4°C.

Haltbarkeit: 1 month

Referenzen

Ao, Chan, Ouyang, Olukitibi, Mahmoudi, Kobasa, Yao: "Identification and evaluation of the inhibitory effect of Prunella vulgaris extract on SARS-coronavirus 2 virus entry." in: PLoS ONE, Vol. 16, Issue 6, pp. e0251649, (2021) (PubMed).

Olaleye, Kaur, Onyenaka: "Ambroxol Hydrochloride Inhibits the Interaction between Severe Acute Respiratory Syndrome Coronavirus 2 Spike Protein's Receptor Binding Domain and Recombinant Human ACE2." in: bioRxiv : the preprint server for biology, (2020) (PubMed).

Olaleye, Kaur, Onyenaka, Adebusuyi: "Discovery of Clioquinol and Analogues as Novel Inhibitors of Severe Acute Respiratory Syndrome Coronavirus 2 Infection, ACE2 and ACE2 - Spike Protein Interaction In Vitro." in: bioRxiv : the preprint server for biology, (2020) (PubMed).

Aguilar-Pineda, Albaghdadi, Jiang, Lopez, Del-Carpio, Valdez, Lindsay, Malhotra, Lino Cardenas: "Structural and functional analysis of female sex hormones against SARS-Cov2 cell entry." in: bioRxiv : the preprint server for biology, (2020) (PubMed).

Antigendetails

Target: SARS-CoV-2 Spike, ACE2

Andere Bezeichnung: SARS-CoV-2 Spike Protein & ACE2

Substanzklasse: Viral Protein
